Home
>
Rear End Accessories
>
XR-1 Rear End Parts
XR-1 Rear End Parts
<< Previous in Rear End Accessories
Next in Rear End Accessories >>
View Larger Image
Price:
From $2.50 to $950.00
Manufacturer:
Diversified Machine Inc.
Product Options
Rear End Part:
Select Rear End Part
CENTER SECTION
SIDE BELL
SHIM KIT, AXLE BEARING
BEARING TAPERED ROLLER, AXLE
RACE, AXLE
O’RING, SIDE BELL
O’RING, AXLE SEAL
SEAL, AXLE
SPIRALOX, SIDE BELL SEAL INTERNAL
AXLE, LIVE (INCLUDING SPOOL & 1/2-20 X 1” BHCS)
PLUG FITTING, BREATHER
90° PUSH LOCK FITTING, BREATHER
POLY TUBE, BREATHER
RING AND PINION 4:86
STUD 7/16 DOUBLE END, SIDE BELL
7/16-14 X 1 1/4” HHCS
7/16-14 X 1” HHCS
7/16 SAE FLAT WASHER
7/16-20 NYLON LOCKNUT
MAG. QUICK CHANGE GEAR COVER (W/O BEARINGS)
GASKET, QUICK CHANGE COVER (TEFLON)
BALL BEARING, QUICK CHANGE COVER
3/8-16 ALUM. HIGH NUT, QUICK CHANGE COVER NUT
3/8-16 X 1” HHCS, RETAINER PLATE
RETAINER PLATE, PINION
RETAINER, STUB SHAFT BEARING
SPACER, PINION BEARING
POSI-LOCK RETAINER
O’RING, POSI-LOCK RETAINER
POSI-LOCK NUT
WASHER BEARING, PINION
BEARING TAPERED ROLLER, PINION
RACE DOUBLE BEARING, PINION
ROLLER BEARING, PINION NOSE SHAFT
3/8-16 X 2.0” STUD, QUICK CHANGE COVER
BEARING EXTERNAL, STATIONARY COUPLER
SNAP RING OD, STATIONARY COUPLER
STATIONARY COUPLER (FEMALE SPLINED)
BEARING SMALL INTERNAL, STATIONARY COUPLER
SLIDING COUPLER (MALE SPLINED)
SNAP RING INTERNAL, REAR BEARING
SNAP RING EXTERNAL , STUB SHAFT
BALL BEARING SHEILDED, STUB SHAFT
SHAFT STUB
1/4” STEEL DETENT BALL
SPRING DETENT
1/2-13 ALUMINUM JAM NUT
1/2” SAE FLAT WASHER
1/2-13 ADJUSTING SCREW, RING GEAR BACK STOP
BACK STOP, RING GEAR
3/8-24 RING GEAR BOLT (THREADED RING GEAR)
WASHER 3/8 BELLEVILLE (THREADED RING GEAR)
3/8 PIPE PLUG
LARGE INSPECTION PLUG WITH O’RING
SMALL INSPECTION PLUG WITH O’RING
SNAP RING EXT , LOWER SHAFT 10-10 COUPLER
LOWER SHAFT, STANDARD (STEEL)
SPACER, FRONT BEARING
SEAL, INTEGRAL COUPLER (SNOUT)
O’RING, LOWER SHAFT
INTERNAL SNAP RING, 10-10 COUPLER
INTEGRAL COUPLER (10-10), STEEL
BEARING BALL, SNOUT
EXTERNAL SNAP RING, INTEGRAL 10-10 COUPLER
SHIFTER HOUSING
O’RING, SHIFTER HOUSING
SHIFTER SHAFT
O’RING, SHIFTER SHAFT
SNAP RING SHIFTER SHAFT
ARM, SHIFTER
3/8-24 X 1/2” BHCS, SHIFTER ARM
3/8 SAE WASHER, SHIFTER ARM
5/16-18 X 1.0 12 POINT BOLT, SHIFTER HOUSING
5/16 AN WAHSER, SHIFTER HOUSING BOLT
LOCKING TAB, 2 BOLT
BRACKET, SHIFTER CABLE MOUNTING
SPACER, SHIFTER CABLE MOUNTING BRACKET
3/8-16 X1.0” BHCS, CABLE MOUNTING BRACKET
3/8 STUD DOUBLE END, TORQUE TUBE
Quantity:
* Whole number only
Email this page to a friend

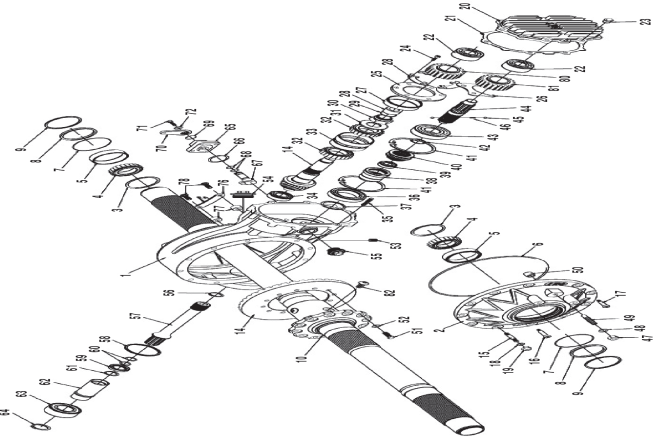

We have all the DMI Bulldog Rear End Parts. All 79! Locate the part needed in the picture and choose the part you want. The numbers in front of the description in the list coincide with the numbers on the picture. Made in the USA.
